150w 160w 170w 175w Mono Solar Panel, Solar PV Panels, PV Solar Panels

150w 160w 170w 175w Mono Solar Panel, Solar PV Panels, PV Solar Panels

share
  • Detail
  • Parameters
  • Review

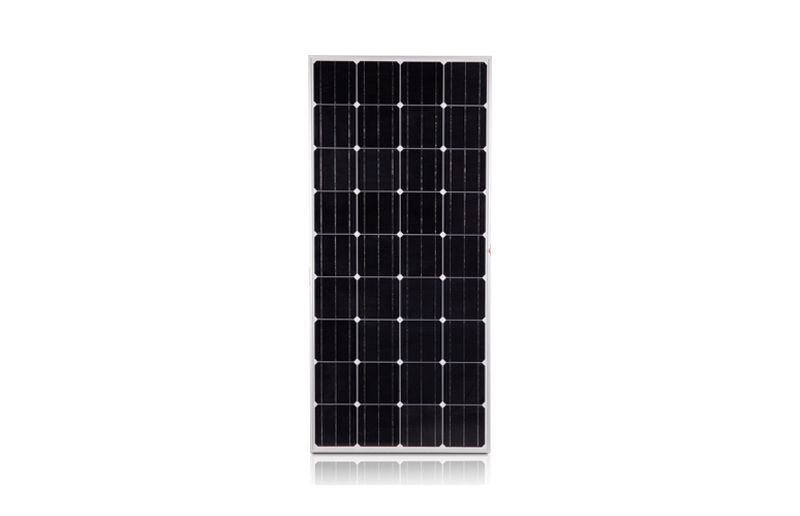

150w 160w 170w 175w Mono Solar Panel, Solar PV Panels, PV Solar Panels170W-1.jpg

Solar Panel Photovoltaic, Solar Panel Shenzhen, Mono Solar Panel,

The Solar Cell Effciency Can Be Reached 18%-21%.


Technical Parameter of Mono Solar Panel



Type Of Module
iPRO-M150iPRO-M160iPRO-M170iPRO-M175
Maximum Power (W) 150160170175
Tolerance (%) ± 3%± 3%± 3%± 3%
Open Circuit Voltage (V) 22.522.522.522.5
Maximum Power Voltage (V) 17.9617.9617.9617.96
Maximum Power Current (A) 8.358.919.479.74
Short Circuit Current (A) 9.29.810.410.7
Module Efficiency (%) 15.316.417.417.9
Solar Cell Efficiency (%) 1818.620.220.8
Series Fuse Rating (A) 10101515
Terminal Box IP65 IP65 IP65 IP65
Maximum system voltage (V)   DC1000DC1000DC1000DC1000
Operating Temperature() -40 ---85-40 ---85-40 ---85-40 ---85






About this item:

  • Advanced encapsulation material with multi-layered sheet laminations

    to enhance cell performance and provide a long service life.

  • EL tested solar modules; no hot-spot heating guaranteed.

    Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments.

  • Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades.

    Anti-reflective, high transparency, low iron tempered glass with enhanced stiffness and impact resistance.

  • Guaranteed positive output tolerance (0-3%); withstands high winds (2400Pa) and snow loads (5400Pa).

    IP65 rated junction box provides complete protection against environmental particles and low-pressure water jets.

  • Pre-drilled holes included for grounding.

    Compatible with different iPRO mounting systems.


Feature:

iPRO 150/160/170/175 Watt Monocrystalline Solar Panel is the key component of a system when going off the grid.

These panels are equipped with male and female solar panel connectors leads coming from the panel,

compatible with iPRO Adaptor Kit so you can set up your system smoothly.

Whether you are going camping in the mountains, this panel can be a great start to your off-grid system!






Contact us for more detail information and competitive price:




Key Words
solar panel
Series
solar panel
Code
PRO-M150W
Item Type
Solar
