Factory direct sales lighting 12v 400w switching power supply for pc oem power supplies

Factory direct sales lighting 12v 400w switching power supply for pc oem power supplies

share
  • Detail
  • Parameters
  • Review
Product Description

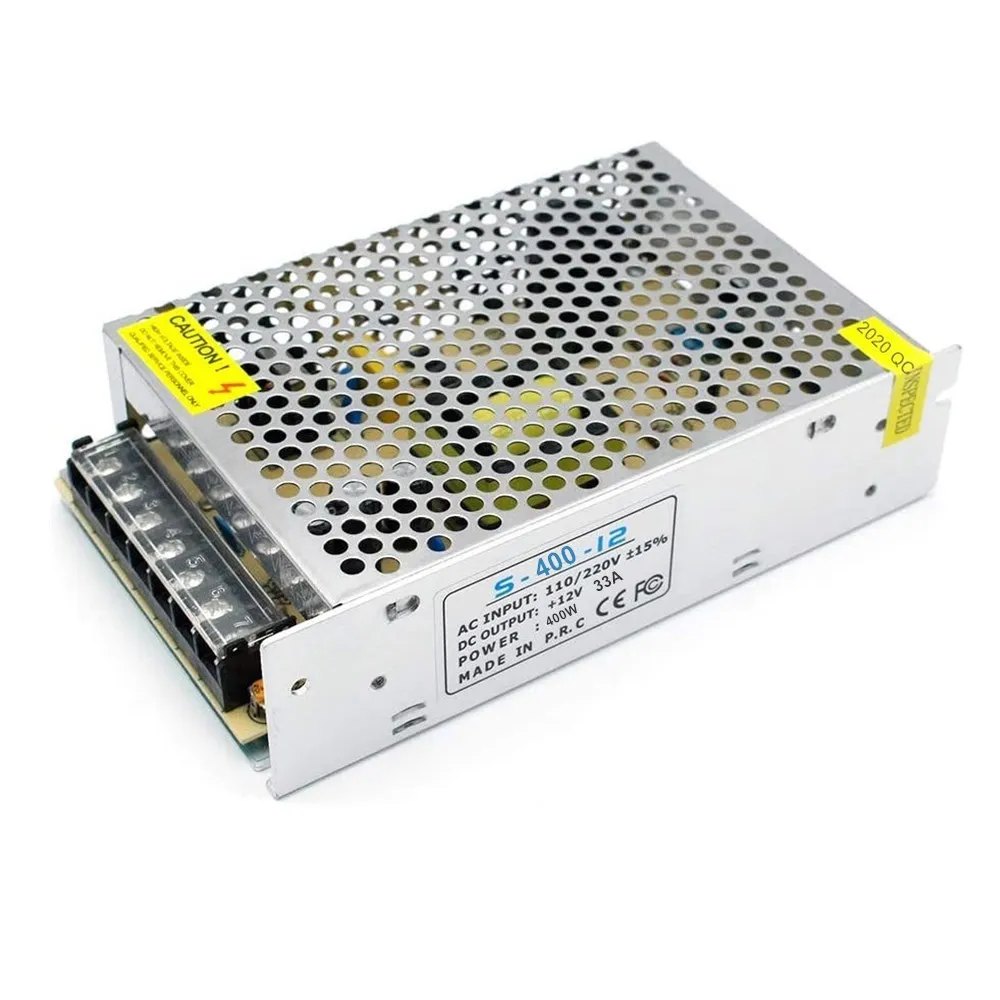

Factory direct sales lighting 12v 400w switching power supply for pc oem power supplies
Features:
* Universal switching mode power supply. Input: AC 110V~ 220V, 50 / 60Hz ; Output: DC 12V, Max 33A 400W. Two output ports. Each port outputs 0~33A automatically, 33A max in total for 2 ports. The default output voltage is 12V, but it can be regulated by 10%, from 10.8V to 13.2V. * It can supply with all currents less than 33A, such as 1A-33A. For example, if your device draws 3.8A, then 3.8A will be supplied. If draws more than 33A, only 33A will be supplied and power supply will be damaged soon.NEVER OVERLOAD ! * We focus on producing high quality power transformers. Automatically over-current cut-off, over-voltage cut-off, over -temperature cut-off, short circuit protection.
Low noise, no spontaneous combustion, no explosion, no fire hazard, stable output, safe to use.

* It is widely use to driving 12V LED strip light, flood light, commercial lighting project, wireless router, ADSL cats, HUB, home security cameras, audio/ video devices, 3D printer, CCTV DVR NVR Surveillance System, LCD/LED monitor screen, webcam router, speaker or other 12V devices less than 400W.

* There is with bulit-in fan on/ off control circuit, fan automatically works according to working temperature. Aluminum case with many holes improves heat dissipation efficiency to avoid overheating.

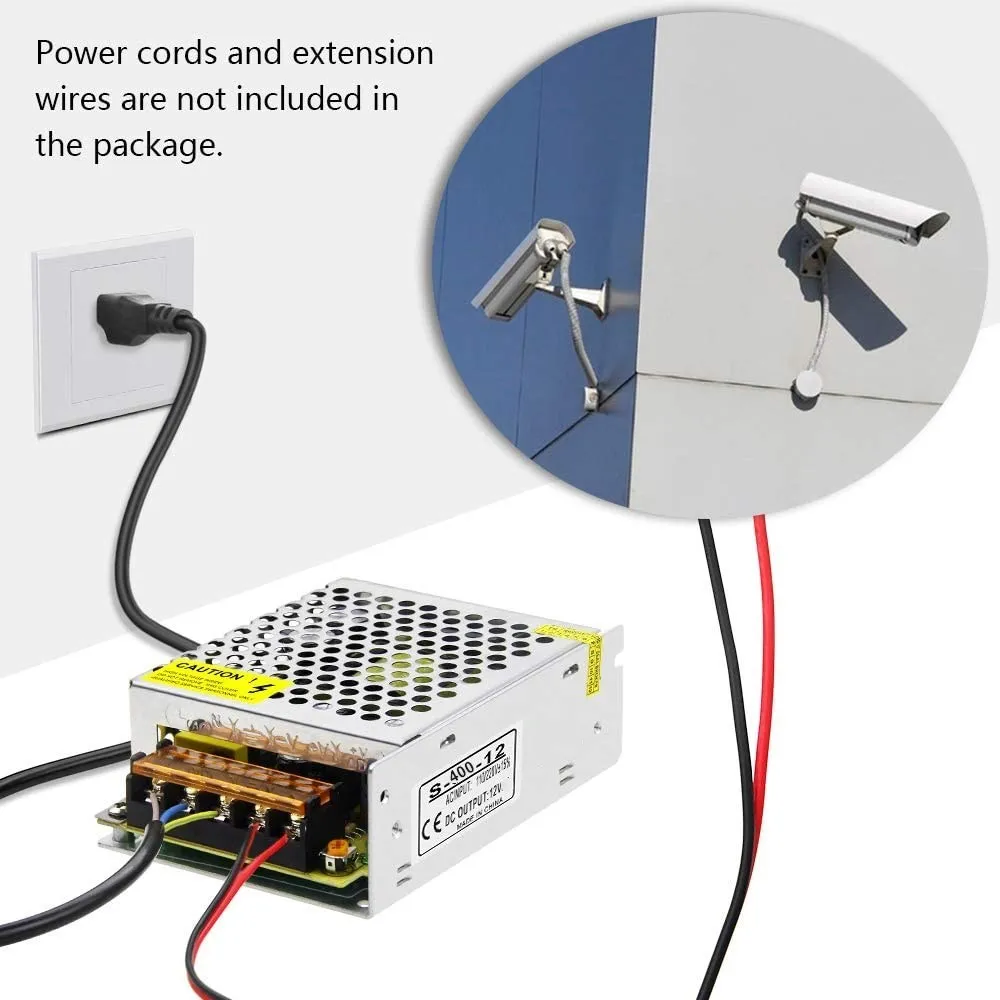

Connection instruction:
* L: AC Live Wire.
* N: AC Neutral wire.
* 〨: Ground.
* +V: DC 12V+.
* -V: DC 12V-.

Kindly note:
1.High voltage inside, NEVER remove the cover. Not waterproof, indoor use only.
2.Make sure your device match the 12V voltage and wattage less than 400W. Please don’t run it overload

The power supply adopts a hollow outer casing, the working temperature is -20~60, which has good safety performance and effectively
prolongs the service lift of the product.

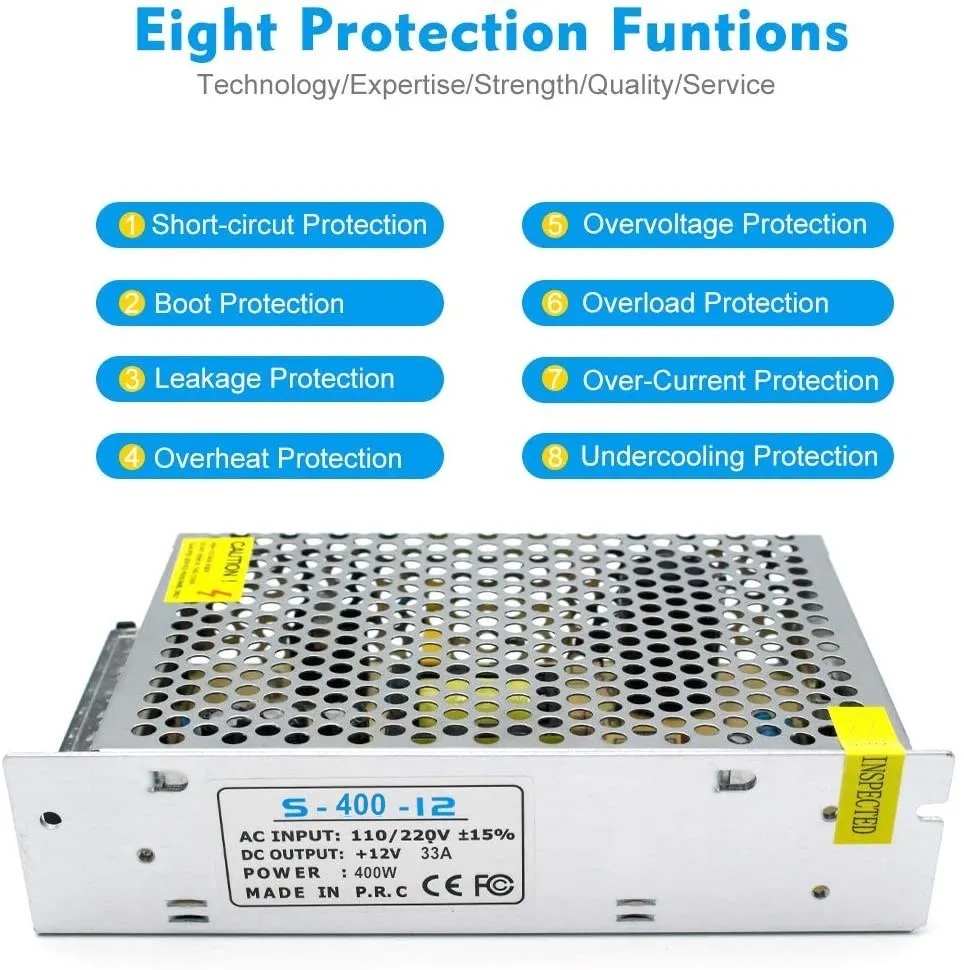

Short Circuit Protection,
Boot Protection.
Leakage Protection,
Overheat Protection.
Over Voltage Protection,
Overload Protection.
Over Current Protection,
Over Cooling Protection.

The power supply are made of high quality component, better for heat dissipation and prolong the lifespan.
