More information for H802RA

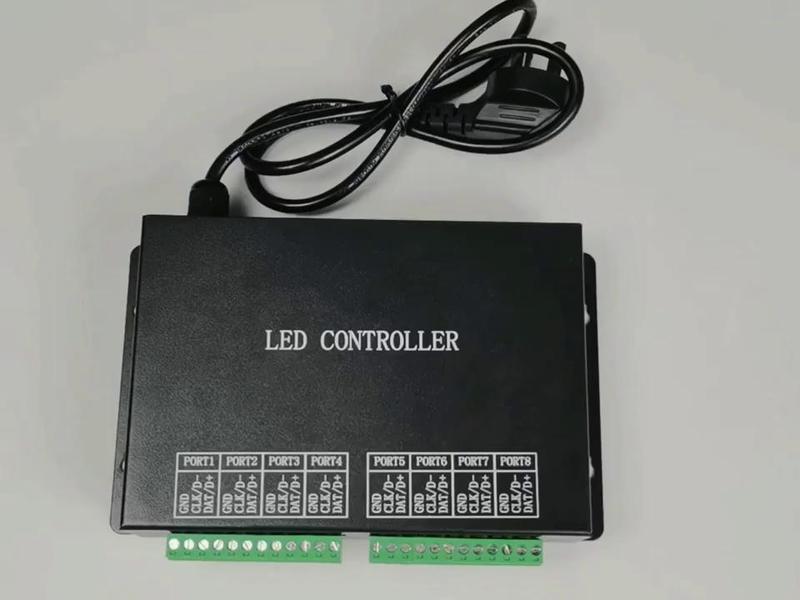

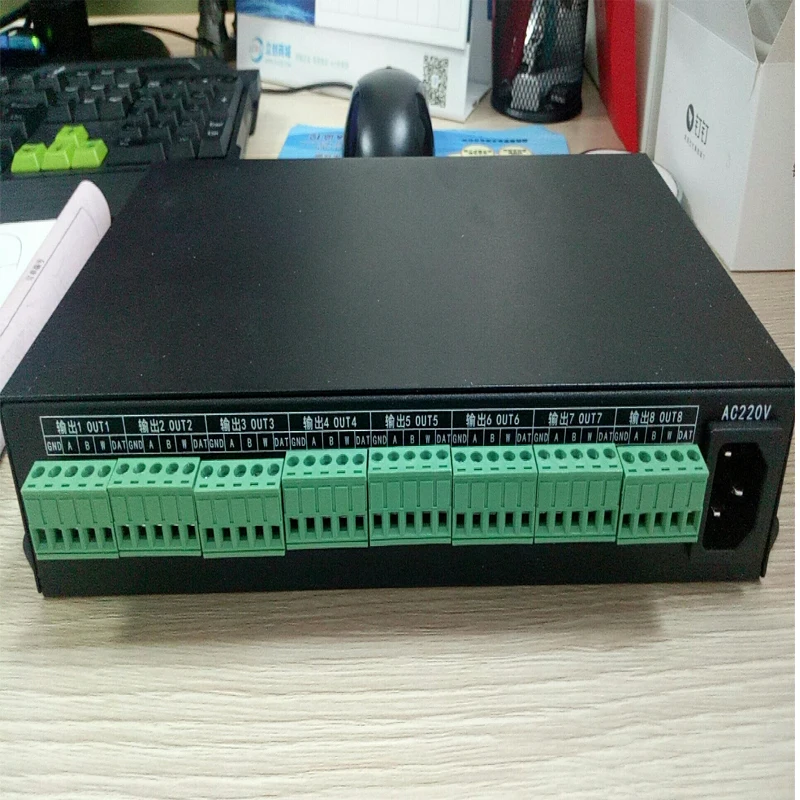

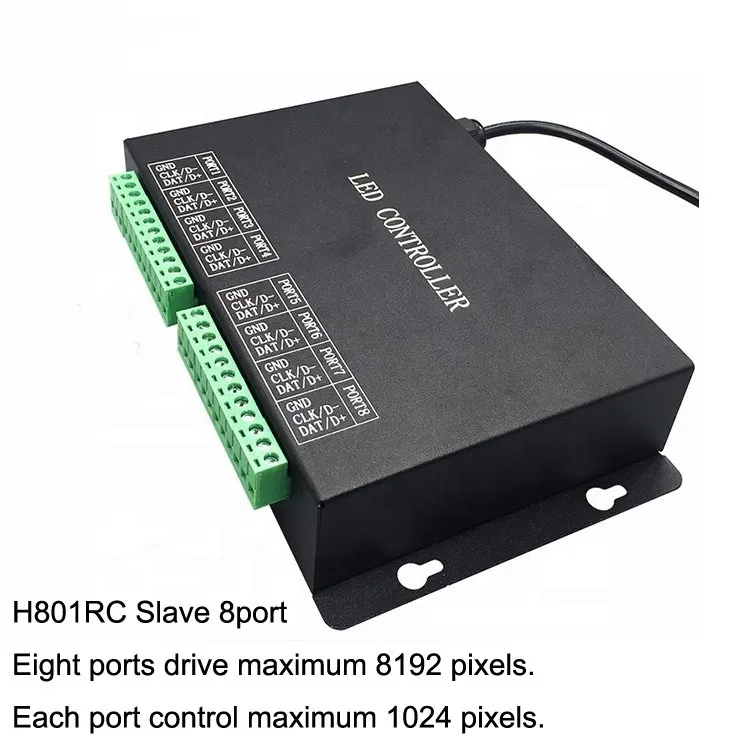

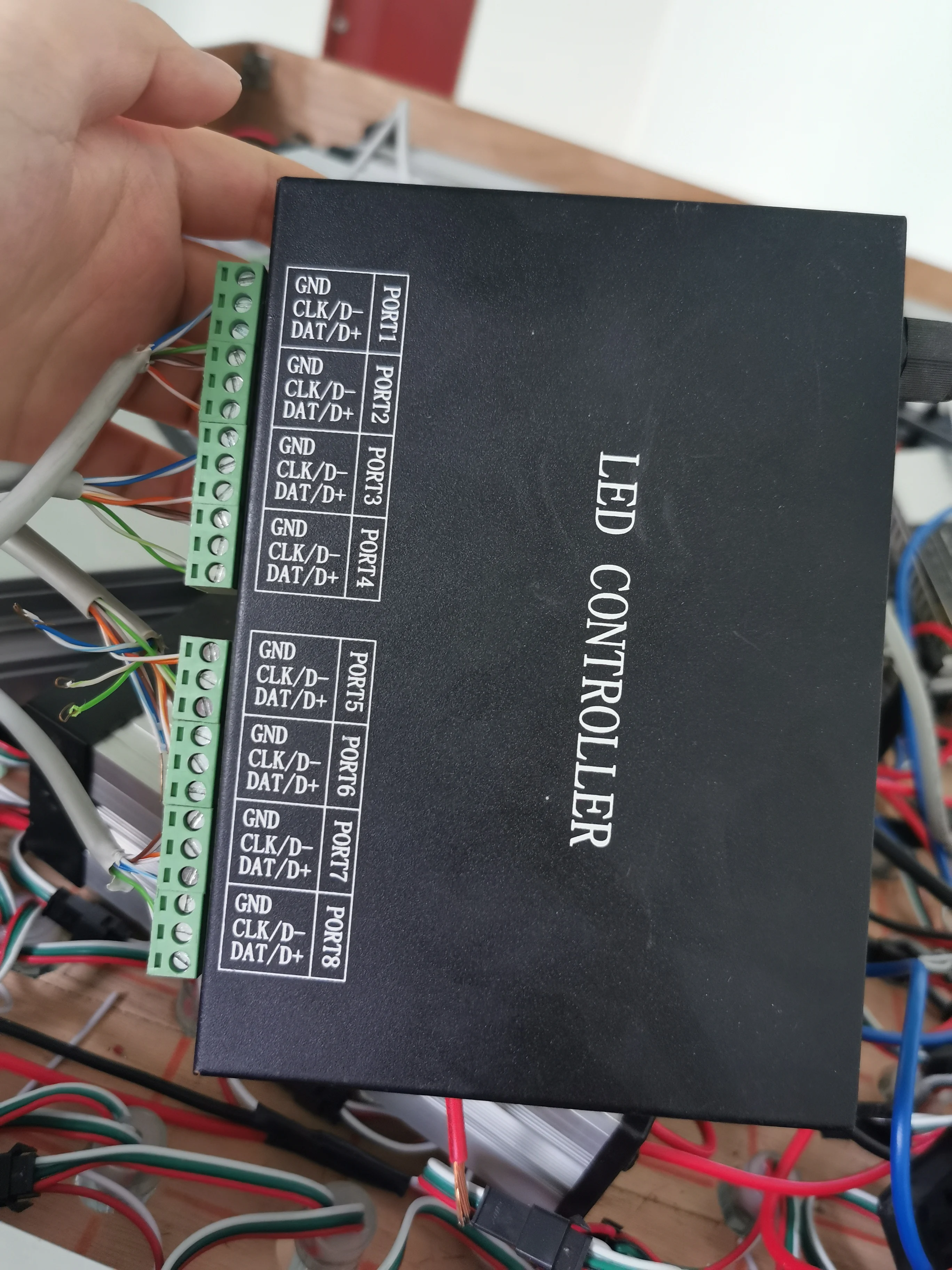

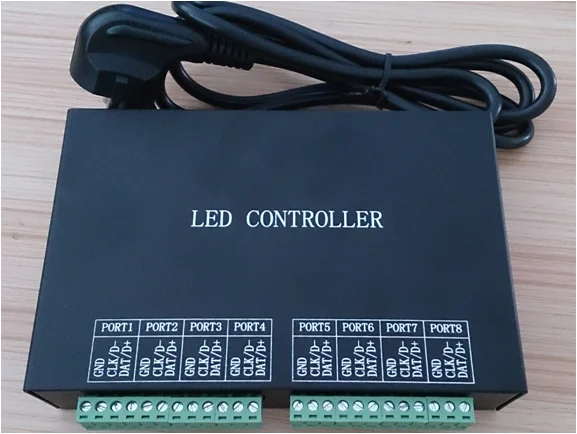

H801RC can be directly connected to the computer network port, and can also be connected to offline and online masters (H802TB, H80xTC, H803TV). Eight output ports, maximum control 8192 points.Currently, the driver chips that can be controlled are LPD6803, LPD8806, LPD6812, LPD6813, LPD1882, LPD1889, LPD1883, LPD1886, DMX512, HDMX, APA102, MY9221, MY9941; LD1510, LD1512, LD1530, LD1532, UCS6909, UCS6912, UCS, 1903, UCS19UCS1909 , UCS512, UCS1603, UCS5603; WS2801, WS2803, WS2811, WS2812, WS2821; SM16716, SM16711, SM16703, SM16709, SM16712, TLS3001, TM1812, TM1809, TM1804, TM1803, TM1829, TM1814, TM1913, TM1914, TM1926, TM1906, TM1926 ; INK1003, P9813, P9883, BS0825, BS0815, BS0901, LY6620, DM412, DM413, MBI6023, MBI6024, P943, P943S, P9411, P9412, QED3110, etc.The online supporting software is "LED Studio Software", and the offline supporting software is "LED Programming Software".
2.Features：1. Eight output ports can control 8192 pixels at most. The maximum number of control points for each port is 8192 divided by the number of ports actually used. The number of ports can be set to one, two, four, or eight.

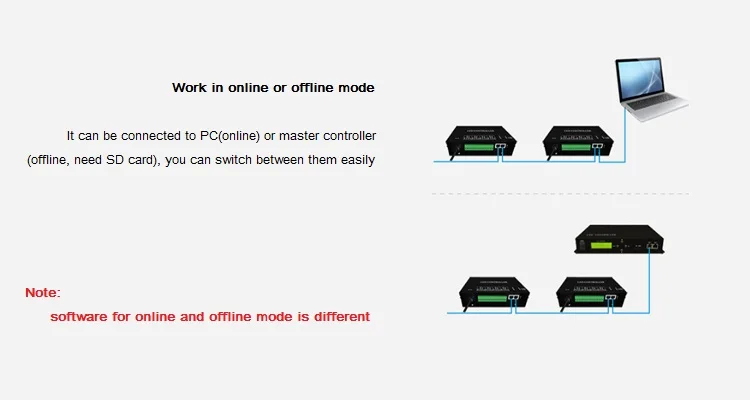

2. It can be connected and detached. It can be directly connected to the computer network card, or connected to the offline and online main control, and it can also be directly connected to the switch and the photoelectric converter.
3. High synchronization performance, the transmission delay of adjacent sub-controllers is within 400 nanoseconds, that is to say, if 100 sub-controllers are cascaded, the delay is within 40 microseconds. The image has no tearing or mosaic phenomenon.
4. The single-line driver chip can be set to TTL output or differential output.
5. Address H801DMX, H860, UCS512C, SM1651X.
6. The control effect is good, the gray level control is accurate, and the gray level above 256 has been processed by hard Gamma.
7. Long transmission distance, standard Ethernet protocol is adopted for transmission signal, and the nominal distance is 100 meters. Sub-controllers, network repeaters, and photoelectric conversion can be used as relays.
8. The scanning clock speed is adjustable from 100K-50M Hz.
9. The use of grayscale technology and anti-gamma correction technology makes the actual display effect more in line with the physiological sense of the human eye.
3. Instructions for use：

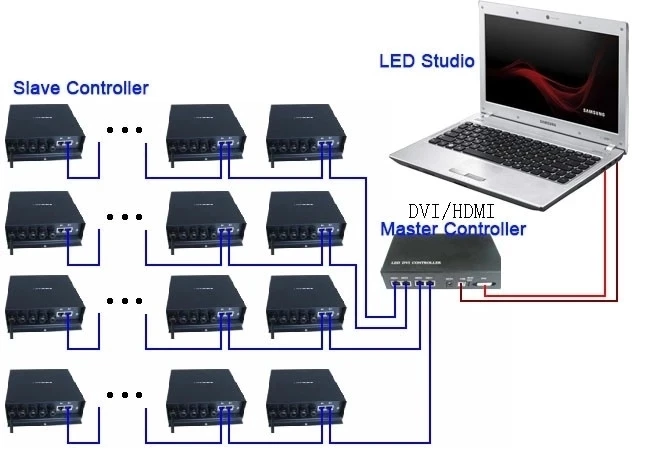

1. Connect the computer network card (or main control) to the NET1 of the sub-controller with a network cable, and connect NET2 to the NET1 of the next sub-controller, and then cascade until the last one.
2. Each sub-controller can control 8192 pixels at most, each of LPD6813 and P9813 occupies four bytes, so it can control 6144 pixels at most.

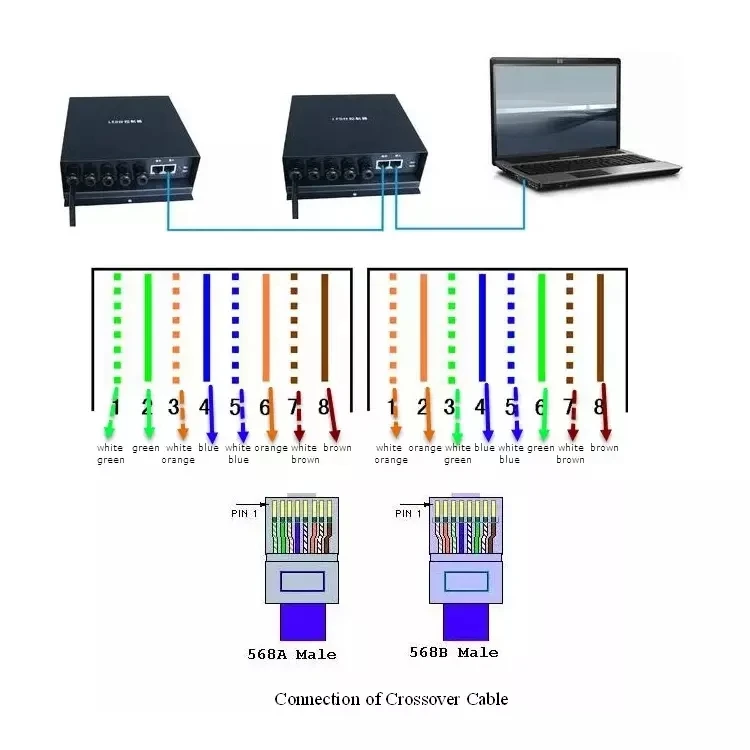

3. Crossover cables and parallel cables can be used. It is recommended to use crossover cables uniformly.Parallel network cable means that both ends of the network cable are connected according to T568A; cross network cable means that one end of the network cable is connected according to T568A, and the other end is connected according to T568B.
