Product Description

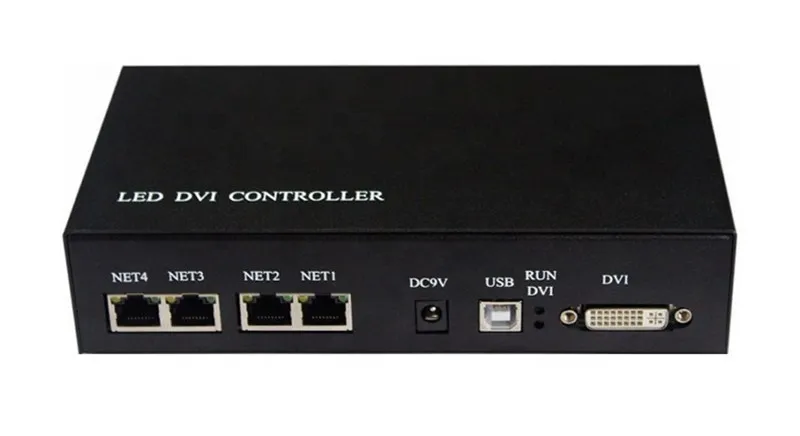

(1). H803TV is an online master controller that transmits data over DVI/HDMI interface.(2). Four network interfaces drive maximum 400000 pixels.
(3). It supports dual-monitor mode, multi-monitor extension mode and duplication mode.
(4). Support the following resolutions: 1024x768, 1280x720, 1280x960, 1280x1024, 1360x765, 1360x1020, 1600x900, 1600x1200.
(5). Use the autorun USB to transmit and control data, which is applied to both 32-bit and 64-bit operating systems.(6). Auxiliary slave controller is H802RA and H801RC. Auxiliary software is “LED studio software”.
(7). Four ports are separated and configured individually, which means four ports can drive different chips. Four ports control 1020 slave controllers in total, each ports control 255 slave controllers.
(8). Data is transmitted based on standard Ethernet protocol and the transmission distance is up to 100 meters.
LPD6803, LPD8806, LPD1882, LPD1889, LPD6812, LPD1883, LPD1886, DMX512, HDMX, APA102, MY9221, DZ2809, SM16716, SM16711, UCS6909,
UCS6912, UCS1903, UCS1909, UCS1912, WS2801, WS2803, WS2811, WS2812, INK1003, TM1812, TM1809, TM1804, TM1803, TM1913, TM1914,
TM1926, TM1829, TM190, TM1814, BS0901, BS0902, BS0825, BS0815, LY6620, BS0825, LD1510, LD1512, LD1530, LD1532, TLS3001, TLS3002,
DM412, DM413, DM114, DM115, DM13C, DM134, DM135, DM136, MBI6023, MBI6024, MBI5001, MBI5168, MBI5016, MBI5026, MBI5027, 74HC595,
6B595, TB62726, TB62706, ST2221A, ST2221C, XLT5026, ZQL9712, ZQL9712HV, HEF4094, A8012, etc.
Note: H803TV supports more than the chips listed above(some chips have the same sequence diagram, such as UCS2903 has the same sequence diagram with UCS1903, so H803TV supports them all).

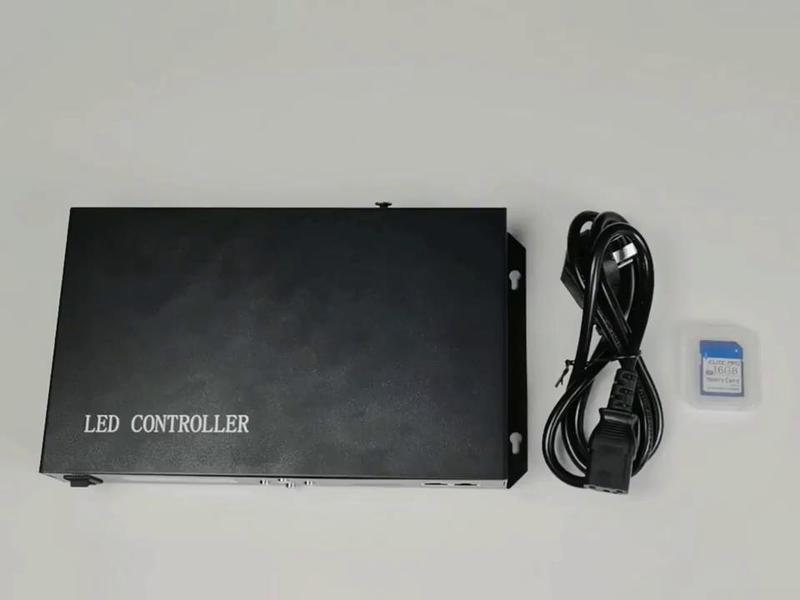

3. Controller and Accessories display

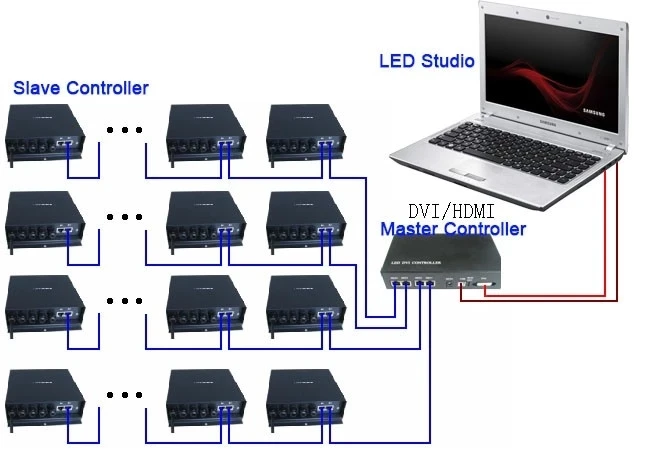

Four ports of H803TV can drive different chips, each port can be configured individually.You can also connect multiple H803TVs to DVI distributer, each H803TV just control part of the screen.
4.Specifications
Input Voltage: DC9V.
Power Consumption: 1W.
Drive Pixels Number: 400000.
NET Weight: 1KG.
Dimension: L19x W11xH4.5cm.
Carton Size: L23x W20 x H72cm.

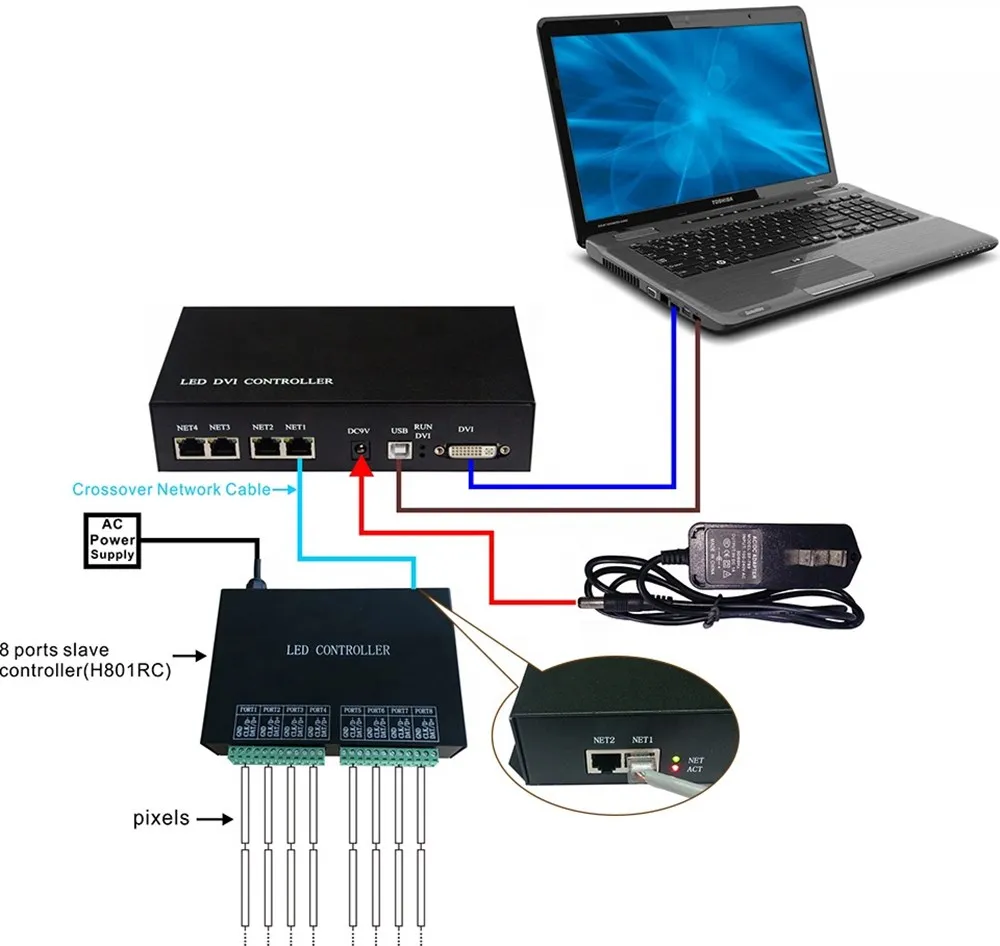

Step 1. Set them up.
Step 2. Change the appearance of displayPress WIN+X on keyboard.
Please refer to the following settings.
Note:
1). H803TV supports the following resolutions: 1024x768, 1280x720, 1280x960, 1280x1024, 1360x765, 1360x1020, 1600x900, 1600x1200.
2). It supports dual-monitor mode, multi-monitor extension mode and duplication mode.
In this manual, i just choose 1024x768 and duplication mode for example.
Then, click "Apply", "OK".
The visible area of your screen should be 1024x768 now.
Step 3. Configure Led Studio.
